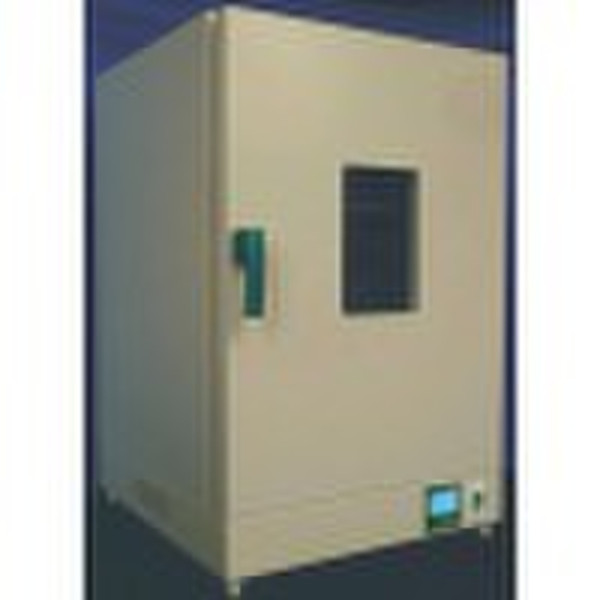

Vacuum Drying oven

It is applicable for the flammable and volatile items of drying, baking, la, disinfection and sterilization. 1.The working conditions: Environmental temperature: 5 30°C Relative humidity: ≤80% Altitude: ≤2000m The power supply voltage: 220v±10% Power frequency: 50hz ± 1hz Power consumption: 650w 2.Working mode: Controller: touch the keys, LED digital display, double row PID control Air circulation: forced convection Timing of time: 1 9999min 3.Temperature: Control: Rt+10°C 200°C Control precison: ±1°C at 100°C Temperature fluctuations: ≤±1°C Temperature uniformity: ±2°C at 100°C Alarm temperature: the first point SV+5°C ( production value ) Second: SV+10°C ( production value ) note: heater shutoff, compulsory 4.Material Studio: 304 stainless steel Box: 08F cold-rolled steel plate, surface electrostatic pensu Shelf: 304 stainless steel, most layer 4/ standard with two layers 5. Size Studio: 300*300*350mm, four circular design External shape: 445*450*710mm 6. Special point Small vertical Vertical circulation duct, eveness Design studio fillet, convenient and clean But being independent limit temperature control device and insert gased join interface Special specifications and requirements to negotiate
